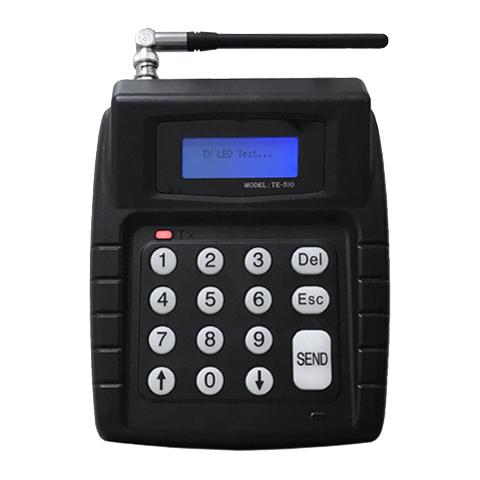

Alpha Transmitter
- Category: All, Transmitters
This transmitter has a display for three lines of text and has 7 dry-contact inputs allowing 7 different on/off inputs to be triggered. This means that the transmitter can be connected to a fire alarm system or for monitoring a production line. A status change of the on / off inputs sends a message to a text pager. Ninety-nine text messages can be pre-programmed to the transmitter and manual messages can be sent from a keyboard.
Call textpagers, output receivers and other paging receivers.
This Alpha transmitter is suitable to call standard pagers, text pagers and also send commands to output receivers. The transmitter has a simple interface and display. A pager database can be programmed into the Alpha transmitter with the software or manually. There is a wall plate available to hang on the transmitter. The range of the transmitter may be tested on site with the help of the range test function.
How does it work?
Messages can be sent by entering a pager number or group of pagers and press send. A text message can be selected out of the pre-programmed messages or can by manually enterd via a USB keybord. To activate output receivers the pager number of the output receiver is entered and a command is sent to the output receiver to trigger an event or change the status to one or more relays. The dry-contact inputs can monitor alarm inputs from fire installations or for example gateway controls.
This transmitter can send messages to pagers with pre-programmed text messages. Additionally, a keyboard can be linked to the transmitter for sending manual text messages. The transmitter has a dry-contact input that allows 7 different on / off inputs to be connected. This allows the transmitter to be used to a fire alarm system or to monitor a production line. A status change of the on / off inputs sends a message to a text pager.
| Frequency List CE | 450 - 470 Mhz license free |
| Protocol | Tone Only |
| Modulation Scheme | FM (FSK) |
| Output Power | 1 Watt |
| Capacity | Up to 999 coaster pagers. |
| Charging time | Coasters Pagers charge within 2-4 hours. |
| Baudrate | 1200 Bps |
| Range | 400 meters - 2 kilometers. |
| Transmitter | L15,4 x B19 x H6,4 cm - weight 390 gram |
Custom Paging Messages
The transmitter Alpha can be loaded with up to 99 pre-set message. This is extremely useful for example calling truck drivers in their own language. We program messages in several languages in the transmsitter. The user can select the phrase in the language they need and send a message in the driver's own language to his pager so the driver receives instructions in his own language. This has proven top be extremely useful for transport companies who work with a lot of foreign truck drivers.
Please contact us for any questions or support. Click here to go to our contact page.
