12-62 Input Contact Transmitter
Contact Input Transmitter

12-62 Input Contact Transmitter

Availability: In Stock
  • Category: All, Industry Paging System, Transmitters
R 6,800.00 ZAR
Description

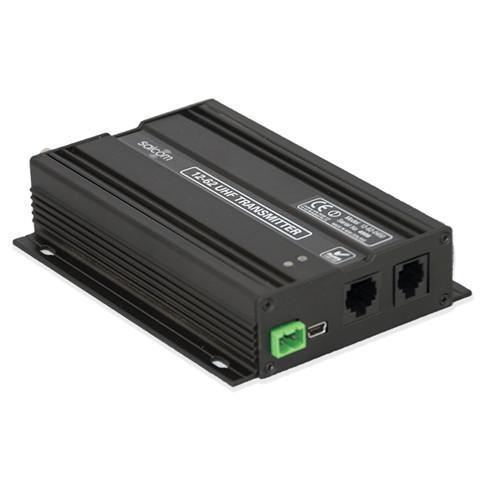

The 12-62 transmitter module can send wireless messages to alarm receivers, pagers and pocsag relay receivers. The transmitter has a large number of protocols including ESPA 4.4.4, TAP / PET and Salcom. The versatility in protocols makes the 12-62 extremely suitable for use in fire alarm panels, emergency centres and home automation systems. This transmission module also includes other protocols that this transmitter can communicate with third-party products such as Ascom and Honeywell.


Control multiple alarm inputs and send messages correspondingly
There are a total of four inputs that are supported and can be used to start relay commands for remotely controlled applications.

For pagination applications, pre-programmed messages can be per input up to high and / or high. The transmitter module also supports low voltage detection and will send a message to a pager when the status of the power supply changes from high to lower than is set.

Configuration of the transmitter is performed via the USB port of serial port via an intuitive SALCOM programming application for the use of operational parameter.

Features

  • Direct / RS232 buffered serial port. USB port.
  • Four discrete relay inputs.
  • POCSAG encoder (programmable on / off).
  • SALCOM, TAP / PET, ESPA, ASCOM protocols.
  • 240 punctuation marks per message.
  • Robust aluminium housing.
  • Radio frequency output adjustable.
  • Buffered messages in a queue.
  • Input time control (watchdog).
Transmitter Alpha

This transmitter can send messages to pagers with pre-programmed text messages. Additionally, a keyboard can be linked to the transmitter for sending manual text messages. The transmitter has a dry-contact input that allows 7 different on / off inputs to be connected. This allows the transmitter to be used to a fire alarm system or to monitor a production line. A status change of the on / off inputs sends a message to a text pager.

    Frequency List CE  450 - 470 Mhz license free
    Protocol

    Tone Only / Numeric / Alpha numeric

    Modulation Scheme FM (FSK)
    Output Power  1 - 4 Watt
    Baud Rate 1200 Bps
    Range 400 meters - 2 kilometers.
    Transmitter L15,4 x B19 x H6,4 cm - weight 390 grams


    Custom Paging Messages
    Preset message are programmed by us. You'll need to provide the text before we programme the devices.

    Please contact us with any questions or for support. Click here to go to our contact page.
