Transmitter & Ten Text Pagers
- Category: Industry Paging System, Inhouse Emergency Systems, Paging Systems, Staff Paging Systems
Description
With this text paging system it is easy to send an instruction to a colleague, employee, or assistant who received the message on the text pager. Wireless communication over long distance from the transmitter to text pagers. The transmitter is used to send text messages to text pagers using the keypad.

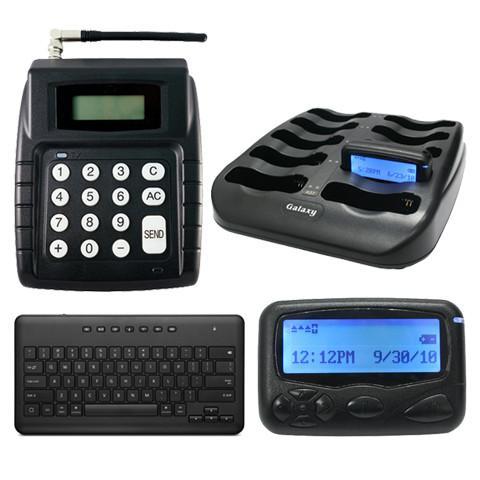

This text paging system consists of:
How this will work in your company
This text pager calling system is controlled from the transmitter. This alpha transmitter can store 99 pre-programmed text messages. Also messages can be sent from the transmitter with a connected keyboard. This text paging system has a range of up to 600 meters. If necessary, a repeater/range extender can be placed to increase the range up to 2 kilometers. The receiver is a text pager which is charged in the charging station.
This transmitter has a display for three lines of text and has a dry contact input allowing eight different on / off inputs to be connected. This means that the transmitter can be connected to a fire alarm system or for monitoring a production line. A status change of the on / off inputs sends a message to a text pager. Ninety nine text messages can be pre-programmed to the transmitter and manual messages can be sent from a keyboard.
Text Pager A-3
This text pager comes with a clip and when it is called it gives a light, vibration and sound signal. The display shows the text, the maximum length of this message can contain 84 characters per message.
Charging station
This charging station has room for charging ten text pagers. Multiple charging stations can be connected via a cable so that only one power outlet is required. The pager charging station has an automatic charging system. This measures when the battery is full so that the battery is not overcharged and to extend the battery life. The pagers are charged within two to four hours and must be charged daily.
* The system is delivered without keyboard.
| Frequency List CE | 430 - 470 MHz license free |
| Protocol | Alphanumeric |
| Modulation Scheme | FM (FSK) |
| Output Power | 1 Watt |
| Baud Rate | 1200 Bps |
| Range | 600 meters - 2 kilometers. |
| Transmitter | L15,4 x W19 x H6,4 cm - weight 390 grams |
| Extra |
7 Dry-contact input triggers |
Programming
We program these text paging systems as per your wishes. You can decide the text, combinations or any other kind of request. We will make sure all is programmed before delivery. Contact us with any request or special setting, there are many features available from dry-contact input to fire emergency paging.
Need more information about the Text Paging Systems? Please contact us via our contact page or click here.
