Eight Button Call Unit & 8 Text Pagers A3
- SKU: PBCS-8BTN-8A3
- Category: Inhouse Emergency Systems, Push Button Paging Systems, Staff Paging Systems
Description
Call one or more pagers wirelessly over long distances with pre-programmed text messages with this call unit. Call a (text) pager with one touch on a button to send a text message.

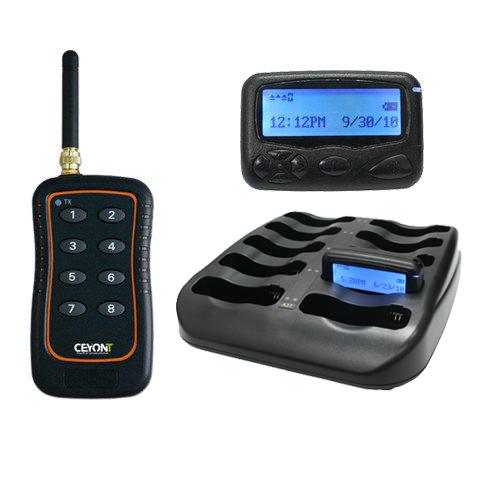

This call system consists of:
How does it work?
The call unit has eight buttons. Each button communicates a pre-programmed text message to one or more text pagers. When the text pager is notified, it gives a light, vibration and sound signal with the text on the display. This text can be the location, for example, with an instruction. This call system or pager system has a wireless range up to 600 meters. With a range extender the range can be increased up to 2 kilometers. An infinite numbers of call units and text pagers can be used.
Each button has its own cap code, which can trigger one pager or group of pagers with one press of a button. The call unit is powered by 3 AAA batteries and there is also a charging station available for the call unit. The dimensions of this call unit are described in the table below.
Text Pager A3This text pager has a battery and is charged by placing it in the charging station. The text message is displayed on the pager display. The display can display 64 characters per message. In addition to a text message, this pager also provides a signal with a light, vibration and / or sound signal.
| Frequency List CE | 430 - 470 MHz license free |
| Protocol | Alphanumeric |
| Modulation Scheme | FM (FSK) |
| Output Power | 10mWatt |
| Baud Rate | 1200 Bps |
| Range | 600 meters - 2 kilometers. |
| Call Unit | L 5,8x B11,3 x H2,3 cm - weight 85 grams |
| Text Pager A3 | L11 x B10 x H1,9 cm - weight 110 grams |
Programming
You can define the text of the buttons on the call unit. The buttons can be programmed independently so that you can call one or more pagers. Each calling unit has a location that is sent with the text call. Thus, the recipient knows what is asked for and from which location. You can define your programming requests with the order.
Need more information about the Push Button Paging Systems? Please contact us via our contact page or click here.
