Input Contact Transmitter
- Category: All, Inhouse Emergency Systems, Transmitters

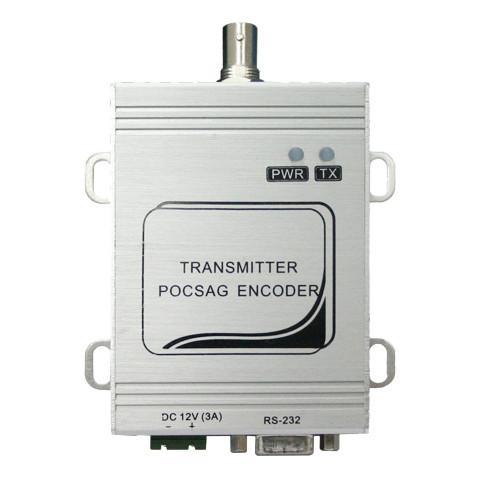

This transmitter has an alarm input which can be connected to, for example, a fire panel. The transmitter is connected to the mains with a supplied adapter. The input contact transmitter is one of the most powerful transmitters in our range. The transmitter supports a wide variety control protocols, including TAP, COMP1, COMP2, and SCOPE. The output power can be adjusted at one and five watt output power. This will roughly give equivalent coverage of between 0.8 and 4 kilometers in unobstructed open space. The input contact transmitter is a great solution for: Dispatch Centers, Maintenance & Engineering Facilities, Healthcare Facilities, Power Plants, Oil Plants etc
Control multiple alarm inputs and send message correspondence
There are a total of two inputs that are supported and can be used to start relay commands for remotely controlled applications.
This transmitter has an alarm input to which it can be connected to, for example, a fire panel. The transmitter is connected to the mains with a supplied adapter. The Input Contact Transmitter is one of the most powerful transmitters in our range. The transmitter supports a wide variety of control protocols, including TAP, COMP1, COMP2, and SCOPE. The transmitter has two dry-contact inputs that allows 2 different on / off inputs to be connected. This transmitter can be used for a fire alarm system or to monitor a production line. A status change of the on / off inputs sends a message to a text pager.
| Frequency List CE | 430 - 470 Mhz license free |
| Protocol | Tone Only |
| Modulation Scheme | FM (FSK) |
| Output Power | 1 - 5 Watt |
| Capacity | Up to 999 pagers. |
| Baud Rate | 1200 Bps |
| Range | 800 meters - 2 kilometers. |
| Transmitter | L6,5 x B.,5 x H9,5cm |
Custom Paging Messages
Pre-set messages are programmed by us. You'll need to provide us with the text before programming the devices. Software applications are available. Ask for more info.
Please contact us with any questions or for support. Click here to go to our contact page.
