I-page TCP transmitter
- Category: All, Industry Paging System, Inhouse Emergency Systems, Telemetry Control, Transmitters

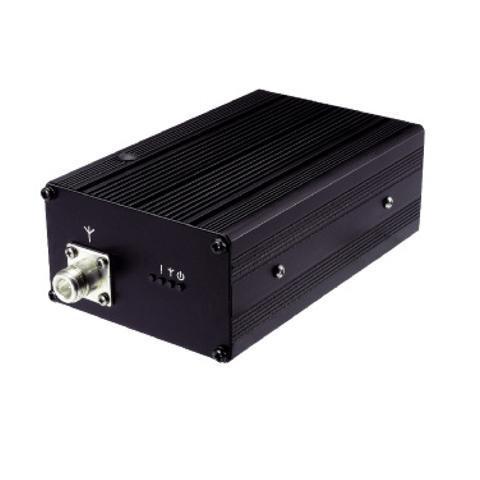

This powerful transmitter is a UHF transmitter module which can be set from 50 milliwatts to 5 watts depending on the application. With the help of the software, each model can be programmed for virtually any application.
This I-page transmitter module can send wireless messages to alarm receivers, pagers, pocsag relay receivers and other wireless receivers. The transmitter has a wide range of protocols including ESPA 4.4.4, TAP, MSP, Molrey and more. The versatility in protocols makes the transmitter highly suitable for use in fire alarm panels, alarm centres and home automation systems. This transmission module also has other protocols that allow this transmitter to communicate with third-party products such as Ascom and Honeywell.
Control multiple alarm inputs and send messages correspondently
There are a total of fourteen contact inputs that can be used to start relay commands for remotely controlled applications.
For paging applications, pre-programmed messages can be assigned to a high and / or low output per input. The transmitter module also supports low voltage detection and will send a message to a pager when the status of the power supply changes or is lower than set.
Configuration of the transmitter is carried out via the USB port or serial port via an intuitive programming application for establishing operational parameters.
Features
- Direct / RS232 buffered serial port. USB port.
- Fourteen discrete relay inputs.
- POCSAG encoder (programmable on / off).
- TAP, ESPA, MSP, ASCOM and other protocols.
- 240 punctuation marks per message.
- Robust aluminium housing.
- Radio frequency output adjustable.
- Buffered messages in a queue.
- Input time control (watchdog).
This I-page transmitter module can send wireless messages to alarm receivers, pagers, pocsag relay receivers and other wireless receivers. The transmitter has a wide range of protocols including ESPA 4.4.4, TAP, MSP, Molrey and more. The versatility in protocols makes the transmitter highly suitable for use in fire alarm panels, alarm centres and home automation systems. This transmission module also has other protocols that allow this transmitter to communicate with third-party products such as Ascom and Honeywell.
| Frequency List CE | 450 - 470 MHz license free |
| Protocol | Tone Only |
| Modulation Scheme | FM (FSK) |
| Output Power | 1 - 5 Watt |
| Baud Rate | 1200 Bps |
| Range | 400 meters - 2 kilometers. |
| Transmitter | L17,5 x B7,5 x H11,0 cm - weight 245 grams |
Custom Paging Messages
Pre-set messages are programmed by us. You'll need to provide the text before programming the devices.
