Driver Call System Matrix with 30 OLED Screen Pagers
- Category: Driver Paging Systems, Industry Paging System, Paging Systems
Description
This driver call system is actually a paging system in order to notify waiting drivers. The notification is done from the transmitter which can be connected to your LAN network. A charging station is needed to charge the Matrix pager plus with OLED screen to show text messages.
This driver calling system consists of:
* If the issuing of the pagers and the calling of the pagers do not take place in the same place, then it is possible to use an extra loading rack with pagers in combination with a separate transmitter (operating station).
The driver call system in practice
Hand over a pager plus to a driver when arrived at your business. In general cases this is the moment to hand over the pager plus to the driver. The pager has a digital screen at the front of the pager showing the pager number. On top of the pager is the OLED screen for showing received text instructions.
When the driver has to be notified where to load or unload the truck you simply call the pager by entering the pager number on the transmitter or into the software supplied by us. Next, you select the preset message in the language of the driver or type a manually inserted text message via the keyboard. Press 'send' to wirelessly send the message to the waiting driver who will be notified by the pager vibrating, beeping and giving an alert by light signals.
Benefits
- Wireless communication over long distances.
- Preset messages can be loaded in every language.
- Efficient and easy to use.
- Effective driver management.
- OLED screen for receiving text messages on the Pager Plus.
Extra Options
Imprint on pager
The pager has space for promotion of your own logo or any other related information. We can design this for you upon request or you may provide us with your own unique design.
Extra charging station
An extra charging station can be connected to another charger so you don't need extra power plugs. Click on the following link to order an extra charging station.
Additional pagers
Any amount of pagers up to 999 can be used in one system. These can be ordered separately, by clicking here.
Software
If you would like to be able to call the pagers form your computer or internal network, we can supply you with software. Basic software as well as more advanced software. We can also provide you the API to be able to connect our hardware to your own software.

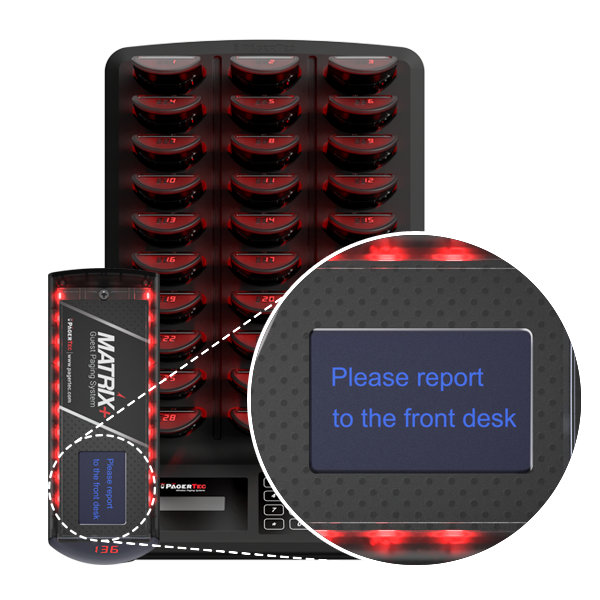

The charging station has space for 30 pagers. The pagers are charged by pushing them into the slot. It will take 4-8 hours maximum to charge a pager fully.
Matrix Pager Plus
The Pager Plus is IP67 qualified and has a bright coloured OLED screen to display the received messages. The pager has the size of a phone, easy to keep in a pocket or so. The pager are heavily tested on durability by dropping the pagers 1000 times.This makes it a solid pager with high quality items for an affordable price!
Transmitter
The transmitter is the device that sends a message wirelessly over a radio frequency to the pager. The output of the transmitter allows to communicate wireless over a certain distance. This transmitter has 1 Watt output, which covers a distance of about 800 meters. The transmitter pro can send preset messages. If any manually inserted messages have to be sent, an alphanumeric transmitter is needed with keyboard input. Please click on this link to see the alphanumeric transmitter.
| Frequency List | 430 - 470 MHz license free |
| Protocol | Alphanumeric |
| Modulation Scheme | FM (FSK) |
| Output Power | 1 Watt |
| Baud Rate | 512 / 1200 / 2400 BPS |
| Range | 800 meters - 5 kilometers. |
| Capacity | Up to 999 Pagers |
| Charging Time | Pagers are charged within 4-8 hours. |
| Battery life | Up to 120 hours. |
| Transmitter | L15,4 x B19 x H6,4 cm - weight 390 grams |
| Charging Station | L40 x B25.5 x H19 cm - 5.25 kg |
| Pager | L14.5 x B5.3 x H2 cm - 85 grams |
Programming
We program these paging systems for your organisation. Contact us for any request or special setting, there are many features available from dry-contact input to fire emergency paging.
Need more information about this alphanumeric paging system? Please contact us via our contact page or click here.
