One Button Call Unit Small & Text Pager A4
Push Button Paging System

One Button Call Unit Small & Text Pager A4

Availability: In Stock
  • Category: Push Button Paging Systems, Retail Paging Systems, Staff Paging Systems
On request

Description
Call one or more pagers wireless over long distances with pre-programmed text instructions and messages. Call a text pager with one press of a button and to send a message to a text pager at the same time.

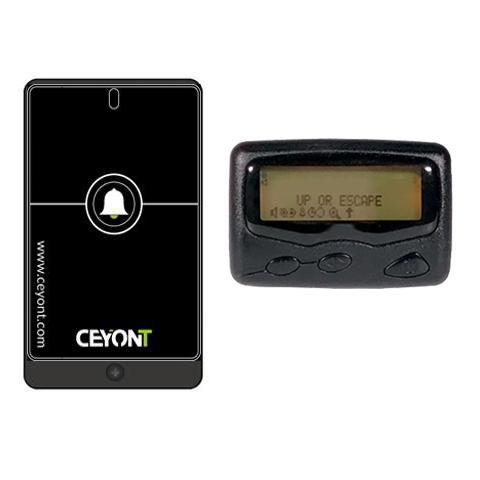

This call system consists of:

  • 1 x Call Unit with One Button
  • 1 x Pager A4

  • How does it works?

    The call unit is used to call wirelessly over a long distance. The text messages are pre-programmed in the push button and sent to the text pagers which has a display. This call system has a range up to 600 meters, with a repeater/range extender it can be increased to 2 kilometers.


    Call Unit - One Button
    The call unit is a device that allows text messaging to be sent to text pagers with a push on the button. The call unit works with cap codes, allowing the button to communicate with one or more pagers. The call system can also be expanded or modified at any time. The call unit operates on 3 AAA batteries.

    Pager A4
    ​​The text pager comes with a clip that allows it to be worn. The screen can display 4 lines of 20 characters or when zoomed in two lines of 14 characters. In addition to receiving text messages it will give a light, vibration or sound signal - these are set independently. The status of the battery is displayed on the screen. The display will show the time and date via the menu and includes the ability to set or adjust the time. This pager is powered by one AAA battery.

    Frequency List CE  430 - 470 MHz license free
    Protocol Alphanumeric
    Modulation Scheme FM (FSK)
    Output Power  10mWatt
    Baud Rate 1200 Bps
    Range 600 meters - 2 kilometers.
    Call Unit L 5,8x B11,3 x H2,3 cm - weight 85 grams
    Text Pager A4 L11 x B10 x H1,9 cm - weight 110 grams


    Programming
    You can define the text of the button on the call unit. The button can be programmed so that you can call one or more pagers. Each calling unit has a location that is sent with the text call. Thus, the recipient knows what is asked for and from which location. You can defined your programming requests with your order.

    Need more information about the Push Button Paging Systems? Please contact us via our contact page or click here.
