Driver Call System Matrix with 15 pagers
Driver Call System

Driver Call System Matrix with 15 pagers

Availability: In Stock
  • Category: Industry Paging System, Paging Systems
On request

Description
Optimize the logistics process with a driver call system. The latest call system in the market with an extra option. In addition to calling the driver, the display can also be used to give the driver the number of the loading location or place of unloading. This number is shown on the display after the pager has been called up. The pager emits a light, vibration and sound signal (the length of the signal can be set) when the pager is called up. A simple solution for a recognizable problem and clear in every language.

Additional option, report load location
In addition to calling up the pager, the pager can also display a digital number on the display as instruction. This means that after calling up the pager the same display can be used to report a dock number. The pager emits a light, vibration and sound signal when the pager is called up.

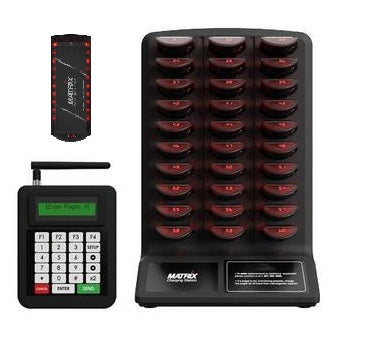

This driver paging system consists of:

How does the driver call system work?
A driver reports to load or unload goods. Give the driver a pager and with the freedom to wait elsewhere until they are called. The number of the pager is a reference to the driver and must be stored. When the driver can enter, key in the number of the pager on the transmitter. The pager emits a sound and vibrating signal so that this driver knows that he can report to the location number or at the agreed location that is shown on the pager 's display . The pager is returned by the driver and can be used by the next driver.


Benefits

  • Wireless communication over long distances.
  • Clarity in every language.
  • Effective and easy to use.
  • Digital screen with option to instruct in 3 digits.



Extra Options


Imprint on pager
There is room for your logo on the pager, or the logo of, for example, a supplier. You may also be able to display a map, explanation or information on it. We can design this for you upon request.

Extra charging station
If more than thirty pagers are needed, extra charging stations can be added. It is also possible to combine a separate transmitter with an extra charging station when the issuing and calling are not done from the same location.

Additional pagers
If extra charging stations are required, additional pagers are also required. These can be ordered separately.

Software
It is also possible to call up pagers from a software supplied by us. This way you can call drivers from the computer. A transmitter is connected to the internal network to enable communication.
Integration in own software:  Our products can be included in your own software. We provide you with the API to enable integration.


Transmitter Pro
This device is used to send messages wirelessly over a radio frequency to the pager. The output of the transmitter allows to communicate over a certain distance. Optionally, the transmitter can be linked to the internal system so that it can be called from your own system.


Charging Station Matrix
This has space for thirty pagers. The pagers are also called up from the transmitter. This call system is expandable and the system can be increased in number up to 999 pagers.


Pager Matrix
The pager has the shape of a mobile phone. Due to the shape of the pager, it can easily be carried in, for example, a trouser or jacket pocket. The pager gives a light, vibration or sound signal, this can be adjusted independently of each other. The pager has a display on which the pager number can be read. This number refers to the user of the pager, in this case the driver.

Extra function
The matrix pager has added functionality to all other pagers on the market. The display of the pager can in fact be used to display a counter number, station, dock number, loading and unloading point number or a hallway or storage. For example, the user can be sent to a counter or hall number using a maximum 3-digit number. The number of the counter is displayed on the display of the pager.

* Additional charging station: If more than thirty pagers are required, an additional charging station can be added. Click on the link to go to this page.
** We also offer a Matrix Pager Plus OLED Screen, which now includes a screen which can display a specified text message using an alphanumeric transmitter.



    Frequency List CE 430 - 470 MHz license free
    Protocol Numeric
    Modulation Scheme FM (FSK)
    Output Power  1 Watt
    Baud Rate 512 / 1200 / 2400 BPS
    Range 600 meters - 2 kilometers.
    Capacity Up to 990 Pagers
    Charging Time Pagers are charged within 2-4 hours.
    Battery life Up to 120 hours.
    Transmitter L15,4 x B19 x 6,H4 cm - weight 390 grams
    Charging Station L40 x B25.5 x H19 cm - 5.25 kg
    Pager L14.5 x B5.3 x H2 cm - 85 grams


    Programming
    We program these paging systems for your organisation. Contact us for any request or special setting, there are many features available from dry-contact input to fire emergency paging.

    Need more information about this alphanumeric paging system? Please contact us via our contact page or click here.
