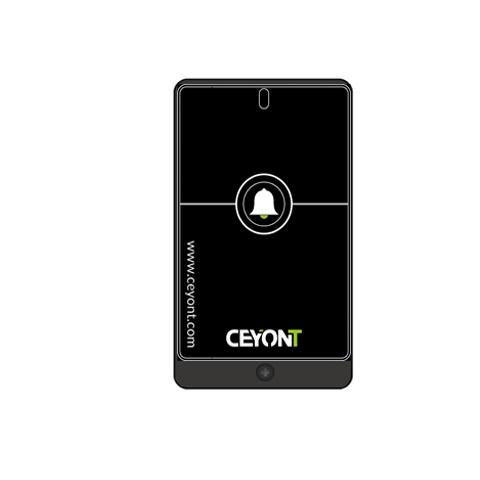

Push Button
- Category: All
Description
In case of emergency it is necessary to promptly ask for assistance. By pressing the push button a call for help is sent. The nurse will receive the call on a text pager.
The push button can be positioned at any place which is most convenient. With a sticker the push button can be attached at any place, to any surface. This button communicates to a text pager that receives the call and gives a light, vibration and / or sound signal. The display shows where or who made the call. For example, the location, room number or name of the person can be displayed here.
Combine multiple pager or push buttons
A push button can also call three pagers with one push on the button. It works the same the other way around with multiple pagers and one panic button. Which means; multiple push buttons can communicate to one text pager. The call system has a range up to 300 meters and can be extended with a repeater/range extender of up to 2 kilometers.
The push button is equipped with a Velcro sticker so it can easily been attached to any surface. The push button has a button that sends a pre-programmed text message to the receiver by pressing the button. When pressing the button a light will light up. At 20 presses per day the push button will last for about a year. The battery can easily be replaced.
| Frequency List CE | 430 - 470 MHz |
| Protocol | Tone Only / Alphanumeric |
| Modulation Scheme | FM (FSK) |
| Output Power | 10 mWatt |
| Capacity | Up to 9999 panic button. |
| Battery Life | Over 10.000 button presses |
| Baud Rate | 1200 Bps |
| Range | 300 meters - 2 kilometers. |
| Push button | L15,4 x B19 x H6,4 cm - weight 390 grams |
Programming
The push button is programmed according to the POCSAG technology, that means that it receives the calls through cap codes. The text which appears on the pager is programmed in push button. When ordering, clearly indicate how you want the call system to be programmed, we will ensure that the products are ready for use when delivered.
